Design Project of a Data Center in Nanjing.

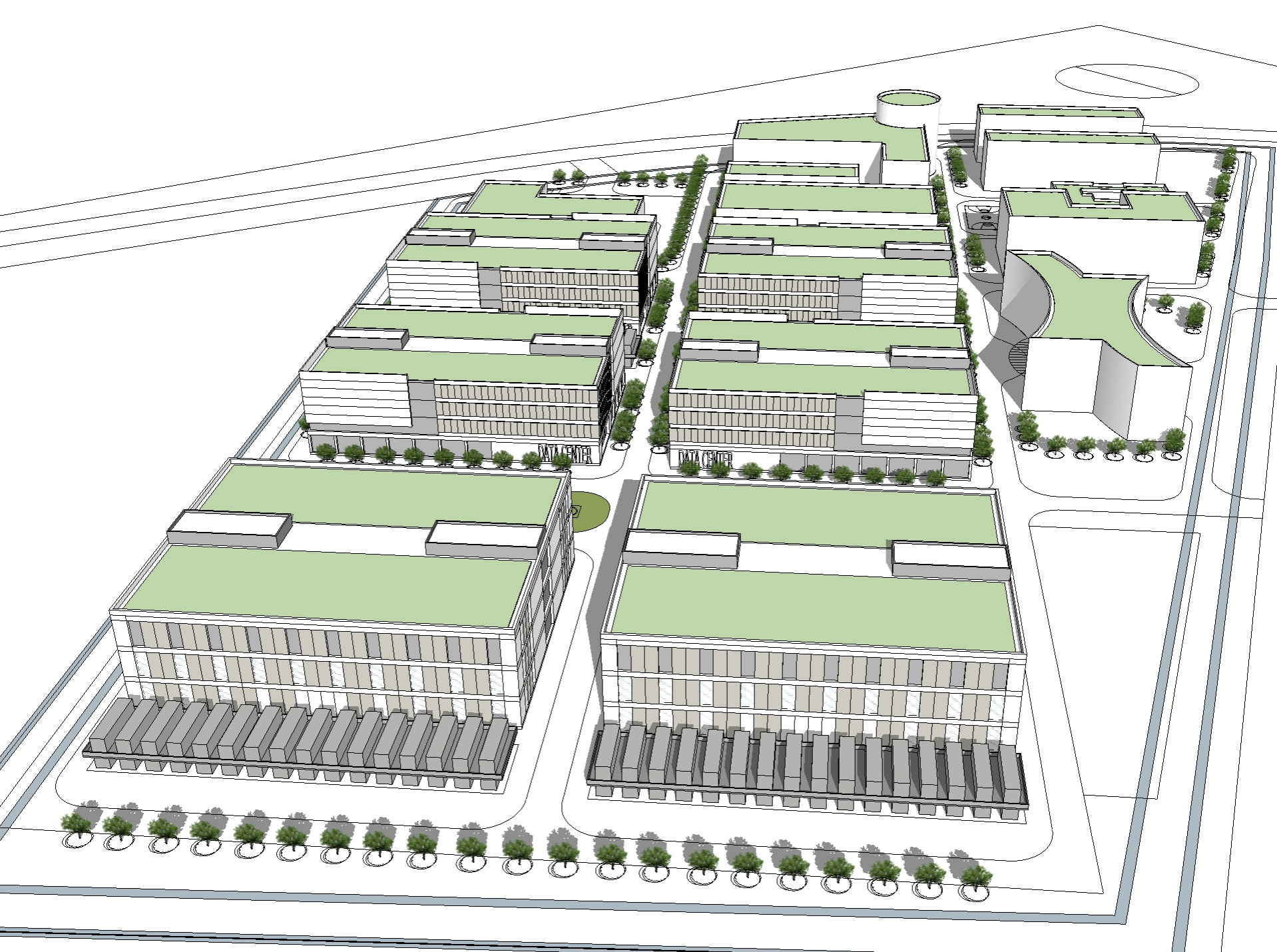

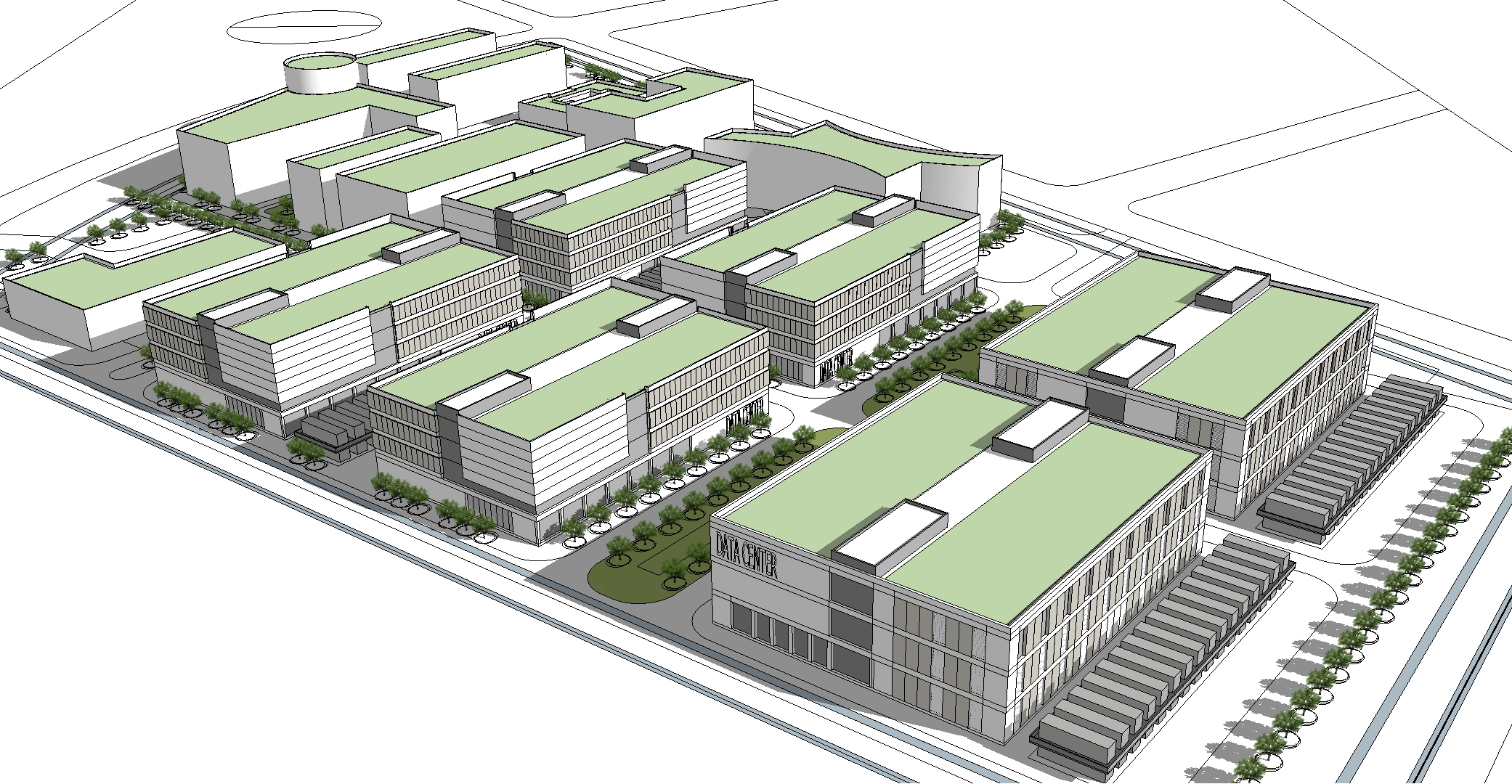

This project is located in Nanjing, with a total land area of 132,397.65m² and a total building area of 184,535.82m². The park includes six data centers (four using water-cooled systems and two using indirect evaporative systems), two dormitory buildings, one R&D building, one O&M management center, one integrated service center, one administrative office building and one 220kV substation.

Each data center building is connected to external 10kV power supplies from different bus sections of the substation, configured in a mutual main/backup setup; Each building also includes an independently built 10kV high-voltage power system. The total power capacity of the park is 319,000kVA, and the data room adopts indirect evaporative cooling unit with closed hot aisles, top return, and side air supply.
