Cold plate liquid cooling air conditioning scheme

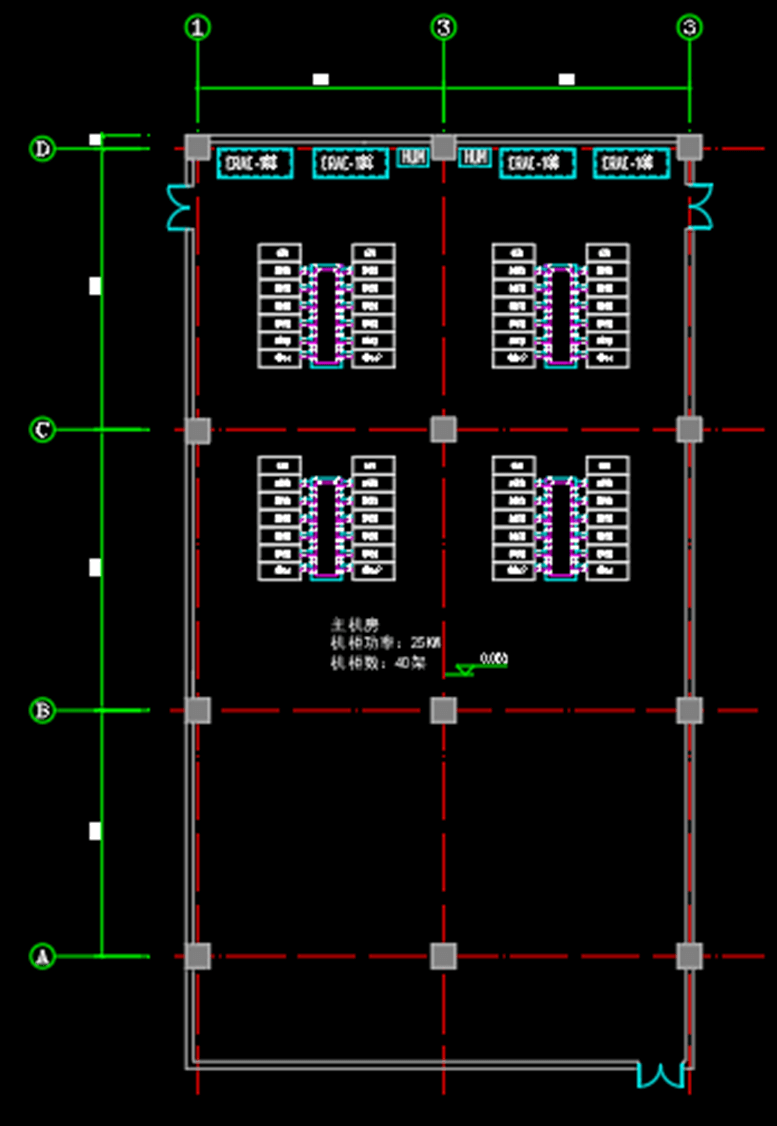

According to the design scheme, 4 identical double-row micromodules are deployed, and 2 manifolds are added to each cabinet (the number of branches is determined according to the number of servers), the bottom of the cabinet is opened, and fixtures and holes are added on the side panel on one side of the manifold where the manifold is installed. The layout scheme of this scheme is as follows:

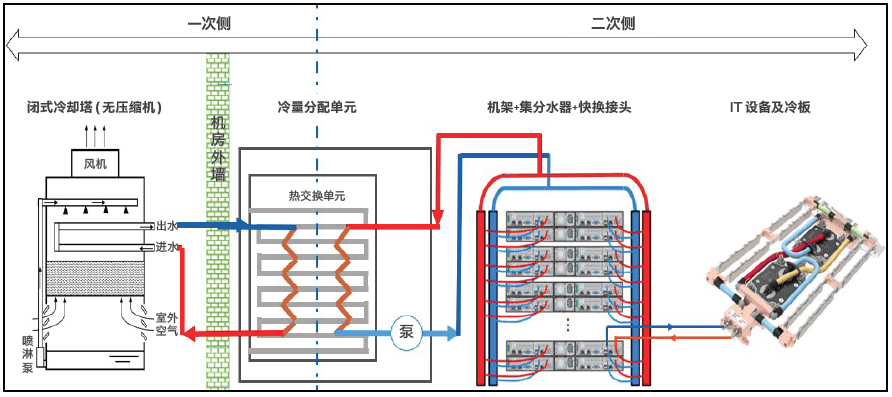

Schematic diagram of cold plate liquid cooling air conditioning scheme

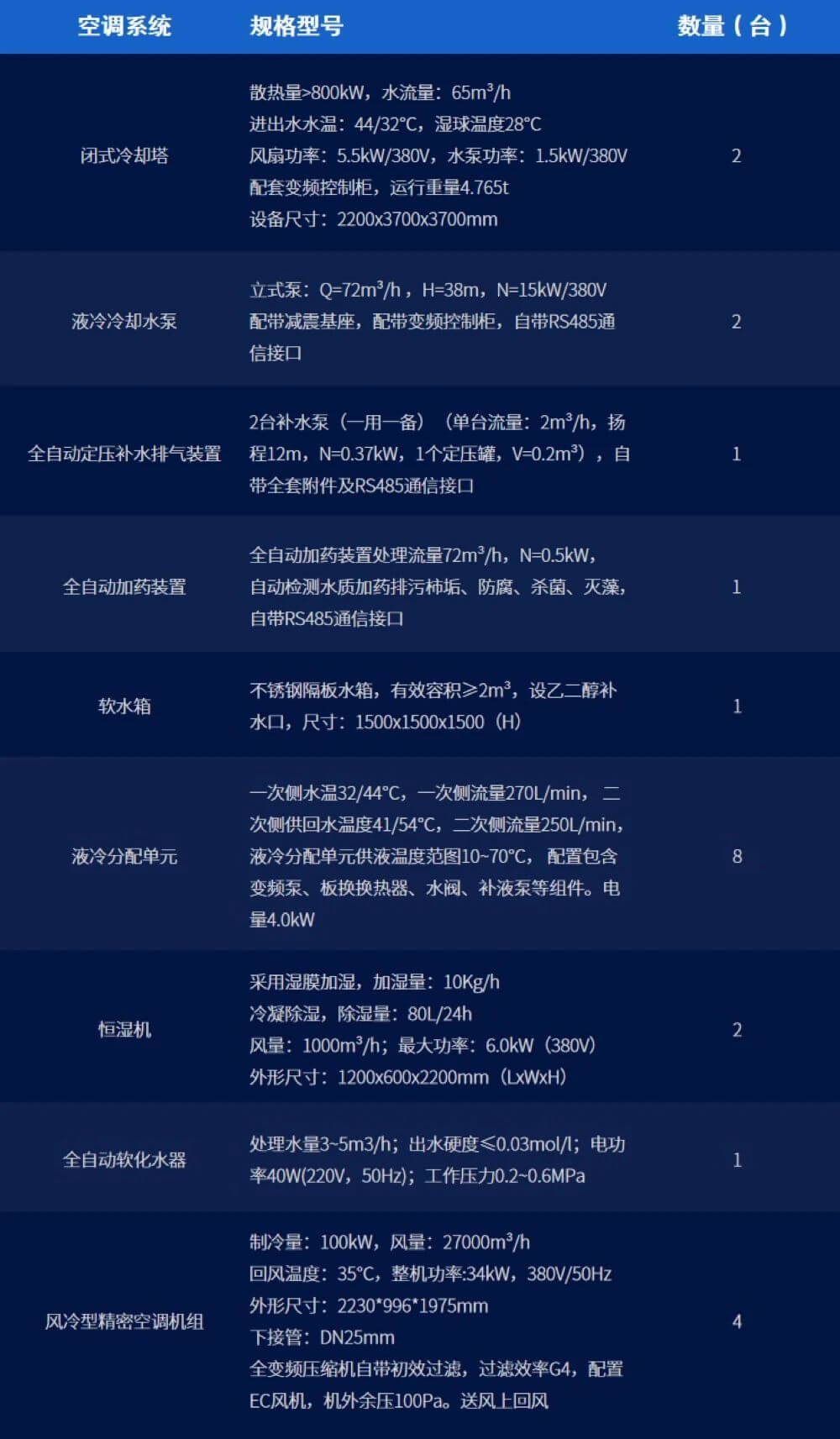

The specific details of the new air conditioning equipment of the cold plate liquid cooling air conditioning scheme are as follows:

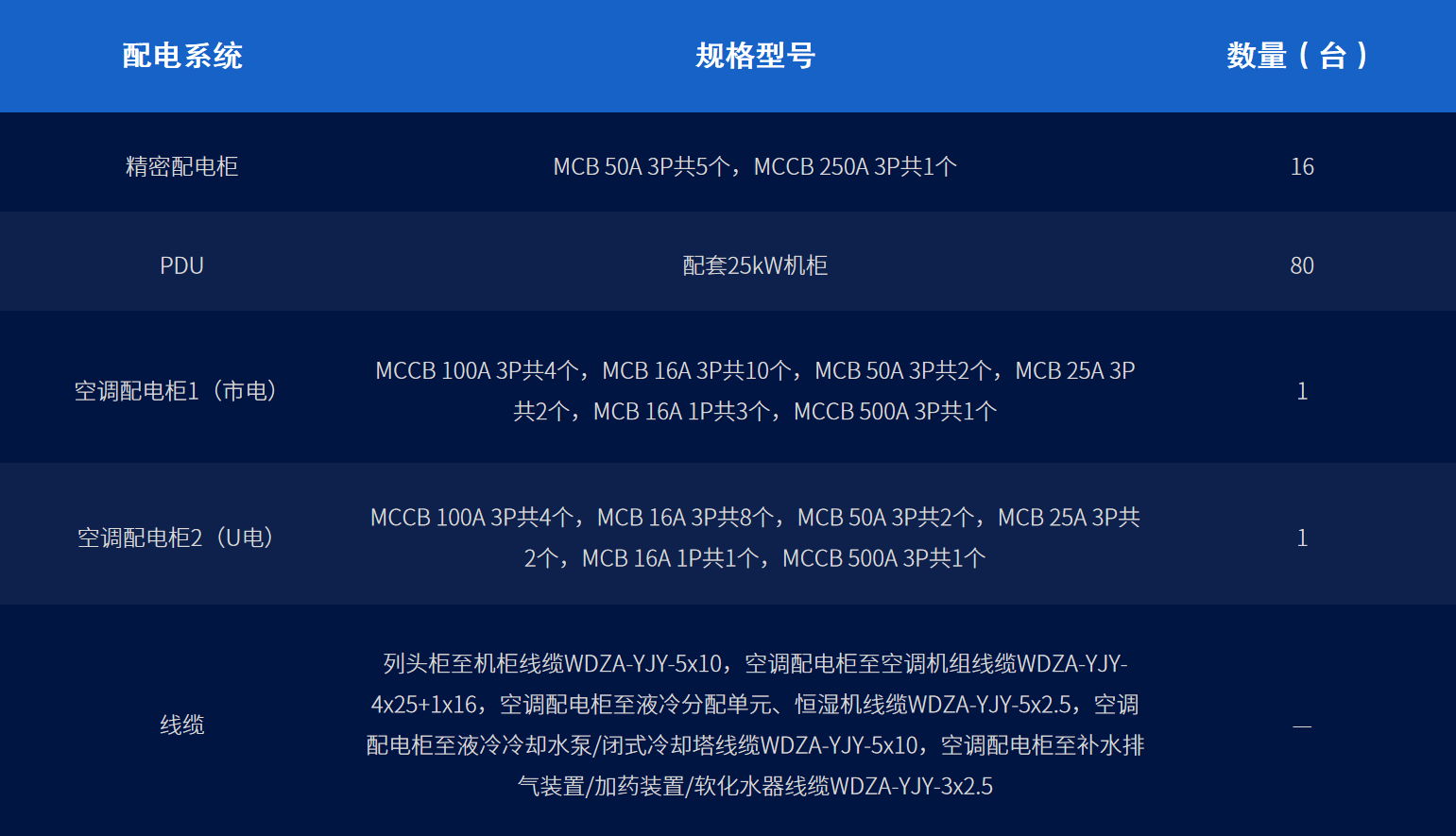

The specific details of the new power distribution equipment of the cold plate liquid cooling air conditioning scheme are as follows:

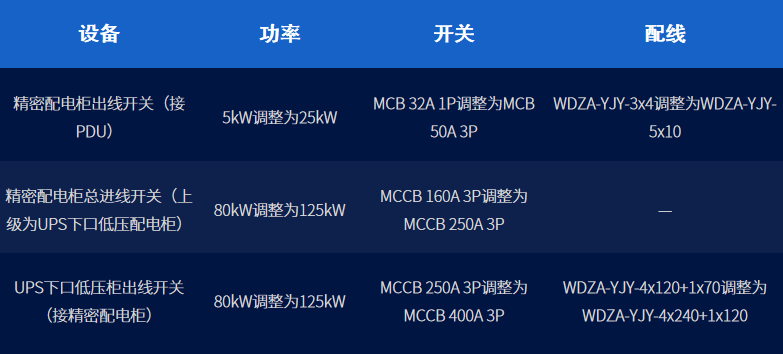

Summary of cabinet power distribution adjustments:
Note: The number and selection of transformers, UPS, and low-voltage cabinets remain unchanged.

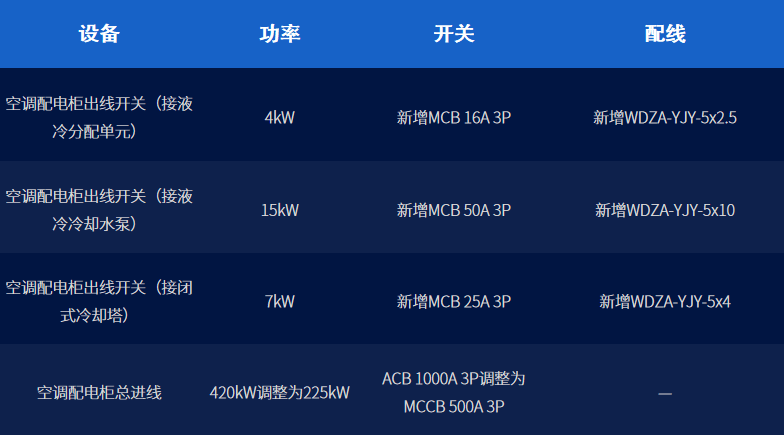

Summary of air conditioning distribution adjustment of cold plate liquid cooling layout scheme:
Note: The number and selection of special transformers, UPS, and low-voltage cabinets for air conditioning should be comprehensively considered according to other loads.

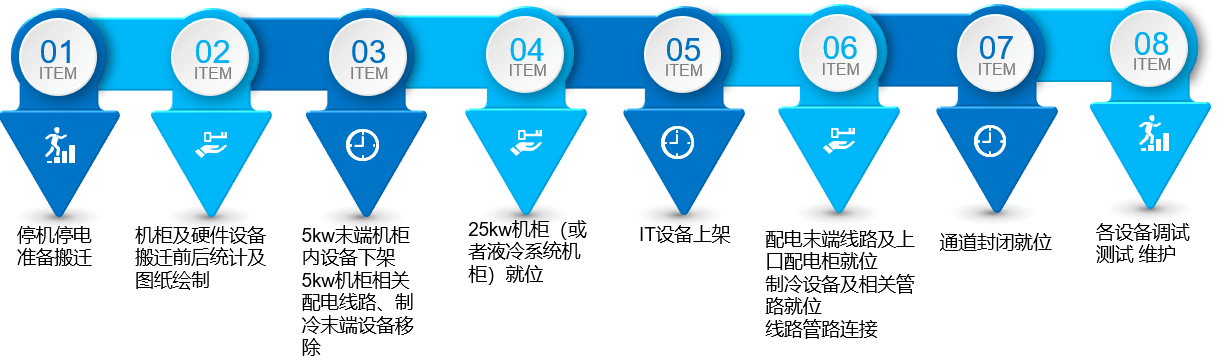

Precautions for the implementation of high-density computer room renovation
1. Before retrofitting, it is important to carry out adequate planning and evaluation to ensure that the equipment and power supply can meet the demand and do not cause other problems.
2. When carrying out cabinet modification and equipment installation, ensure that safe operating procedures are followed to avoid injury to other equipment or personnel.
3. When connecting to the network, ensure that the network is properly laid out and necessary security measures are in place to protect the data center from potential cyber threats.
4. During testing and debugging, it is necessary to carefully check the working conditions of each cabinet and micro-module channel to ensure that the equipment can operate normally.
5. Establish regular maintenance and management procedures to ensure the reliability and performance of the equipment, and deal with possible faults in a timely manner.
