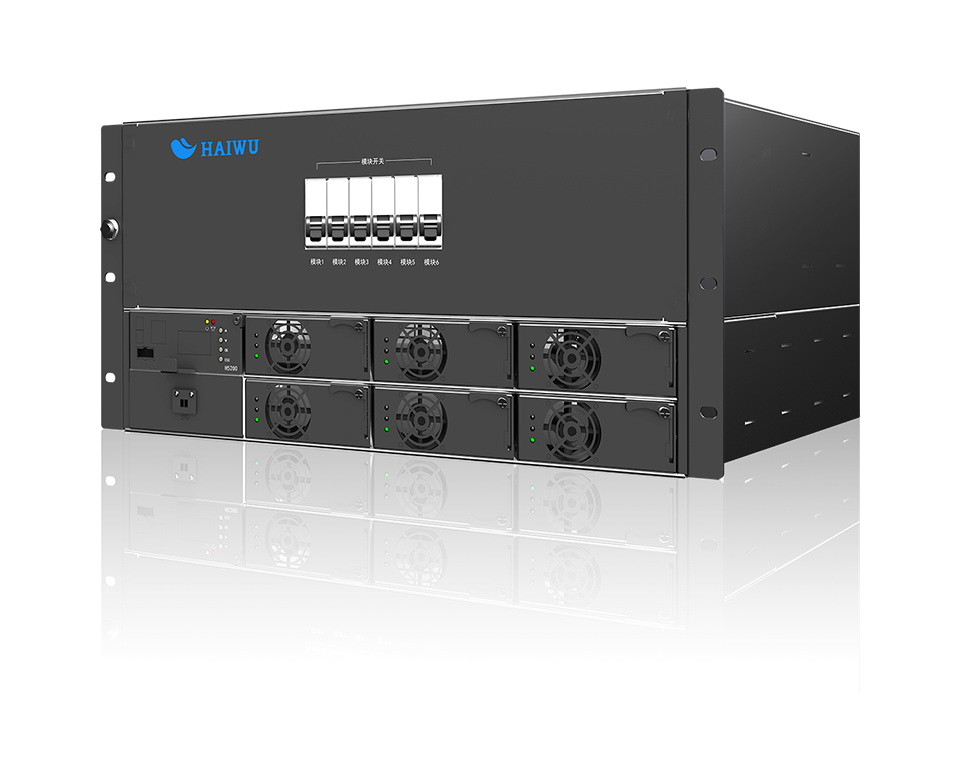

Embedded switching power supply

The transformation of Haiwu embedded switching power supply frame mainly consists of a monitoring unit, a rectifier unit, and a frame for embedded installation. It can be flexibly installed in various cabinets, such as IT cabinets and outdoor integrated cabinets. The embedded switching power supply can be flexibly configured according to different requirements, such as whether it is equipped with AC and DC power distribution. This system has the characteristics of easy installation and layout, high power density, and flexible configuration, with a power capacity ranging from 60A to 600A.

Efficient module>97%; General - effect module > 94%

Support the function of mixed insertion of high - efficiency/normal - efficiency modules

1URectifier module

High power density, the overall system height is 9

Input voltage90~300Vac or 156~520Vac

Ultra-wide input range of AC voltage, adapting to harsher power grid usage environments.

Value proposition

Reliability

Ultra-wide input range of AC voltage, with an input voltage of 90 - 300Vac or 156 - 520Vac, suitable for harsher power grid environments.

All-round lightning protection, suitable for areas with frequent thunderstorms.

High energy efficiency

High power density, 1U rectifier module, overall system height of 9U. High-efficiency modules > 97%; General-efficiency modules > 94%; Supports the mixed insertion function of high-efficiency/general-efficiency modules.

Intelligentization

Configuring appropriate sensors can achieve environmental monitoring and provide multiple sets of backup monitoring parameters. It can provide RS232 and RS485 communication interfaces. The communication with the power and environment monitoring system adopts the standard general electrical protocol, which is convenient for realizing remote monitoring and unattended operation.

Application scenarios
