Small to mid-sized computer rooms

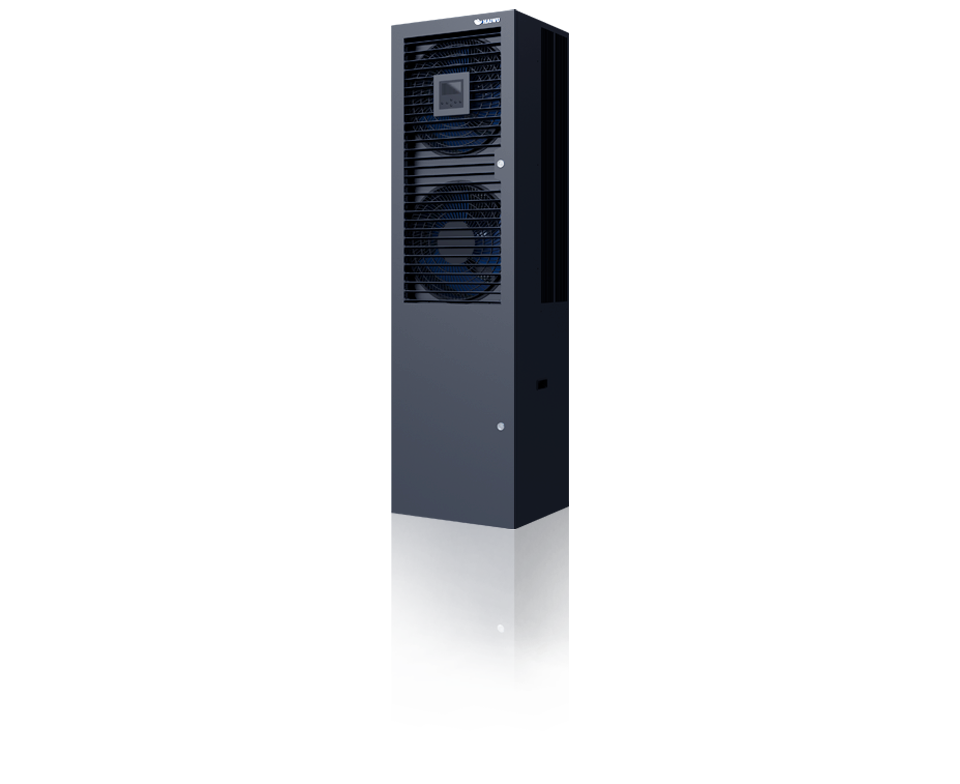

FHF Heat-pipe Integrated Air Conditioner
The FHF dual-cooling heat-pipe air conditioner is an energy-efficient model designed for mission-critical environments such as green data centers and telecom rooms. It features a fully variable frequency design, precise temperature control, exceptional reliability, stability, and energy savings, high sensible heat ratio, and dual coil design integrating heat pipe (always on) and compressor (auxiliary cooling). It utilizes natural cooling sources to meet 7×24h continuous operation requirements.
Three modesfor cooling
In the heat pipe mode, it uses indoor-outdoor temperature and elevation differences for natural cooling.
580mmwide-bodied air delivery
Large-area front downflow based on CFD airflow simulation
Value proposition
High reliabilityAC axial fan + electronic expansion valve for precise control and stable operation.
Reliable operation with outdoor ambient temperature at -30°C-45°C.
High efficiencyThree-mode cooling automatically switches to maximize natural cooling
"Large-area wide airflow" design with CFD-optimized airflow distribution
“High airflow, low enthalpy difference” design with sensible heat ratio ≥ 0.92, ensuring cold air reaches the heat source.
Intelligent operationsThe self-developed microcomputer intelligent control system comes with a full Chinese 6-key display and integrates multiple functions with a user-friendly interface for real-time precise control, offering convenient and flexible operation while effectively preventing misoperations.
Designed for 24h×365-day continuous operation with long lifespan.
Standard RS485 interface with multi-level passwords
Network control supports up to 32 units.
Application scenarios
4-in-1 computer room
Battery rooms/power rooms/power distribution rooms
Equipment rooms
High-end telecom base stations

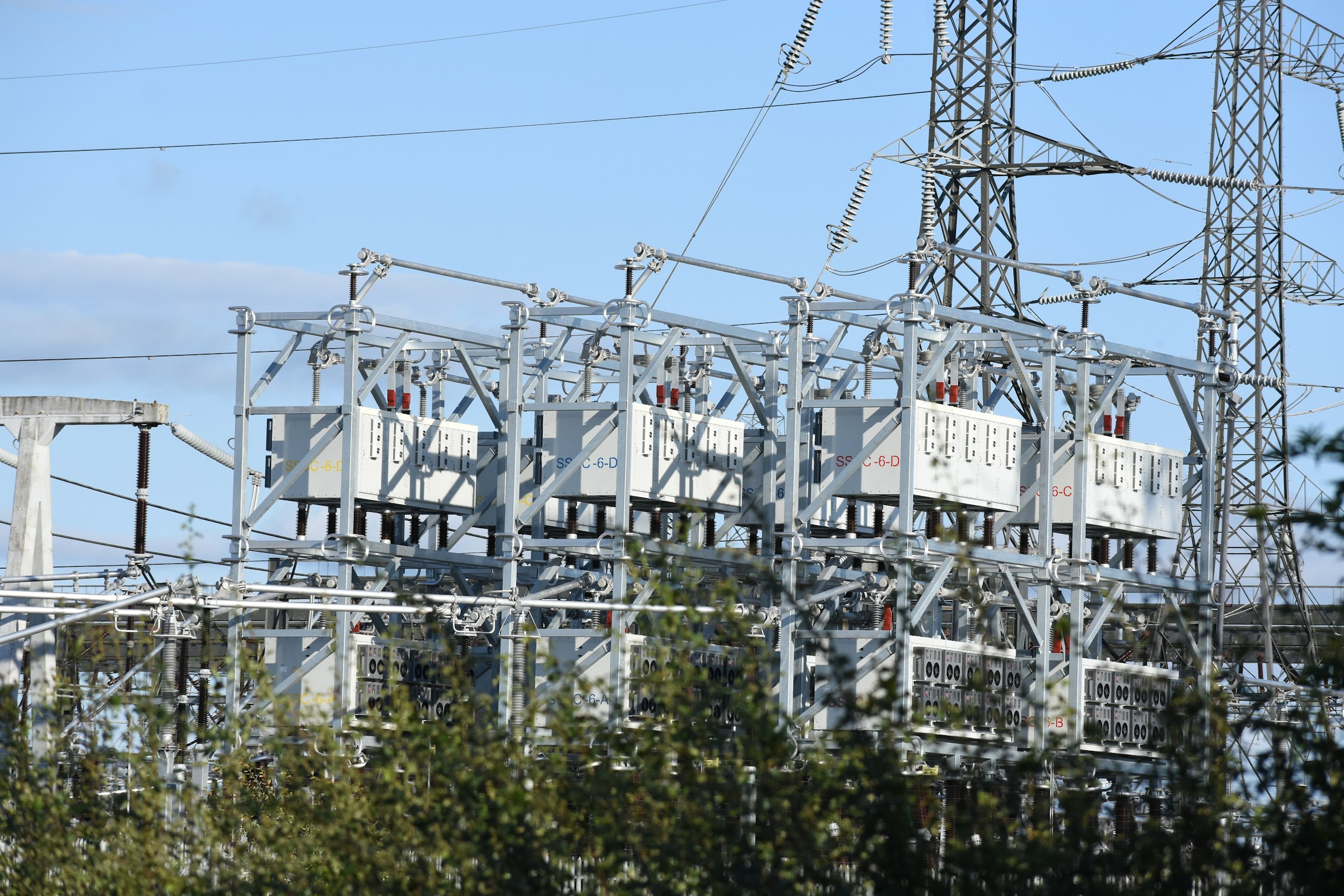

Substations
Monitoring rooms
