IDC computer room

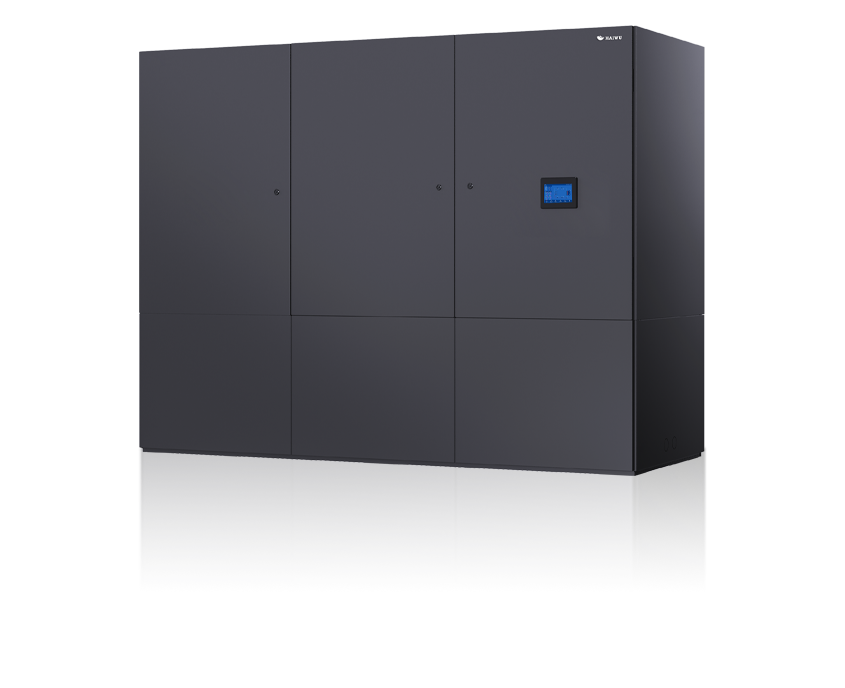

CMC room-level chilled-water precision air conditioning
It is a terminal temperature control product for machine rooms under the CyberMaster A/C series. It works in conjunction with chillers, pumps, and other components to form a cooling system that fully leverages chilled water for heat dissipation. Featuring strong cooling capacity and outstanding energy efficiency, it is well-suited for modern data centers.
EER ≥20
Use centralized cooling for efficient heat dissipation
cooling power consumption reduced by 30%
High inlet/outlet temperature (18/24°C) with high return air (35°C)
Support group control of up to 32 units
Value proposition
High reliabilityMultiple protections (over/under voltage, delayed start, multi-level password, water leakage protection, etc.)
Front-access maintenance; optional dual power inputs and external temperature sensors
Electrical isolation design (waterproof and fireproof)
High efficiencyCentralized cooling with EER ≥20
EC centrifugal fan with stepless speed control; electric two-way water valve with automatic flow adjustment
Intelligent operationsRS485 communication monitoring, 7-inch LCD touchscreen HMI
Application scenarios

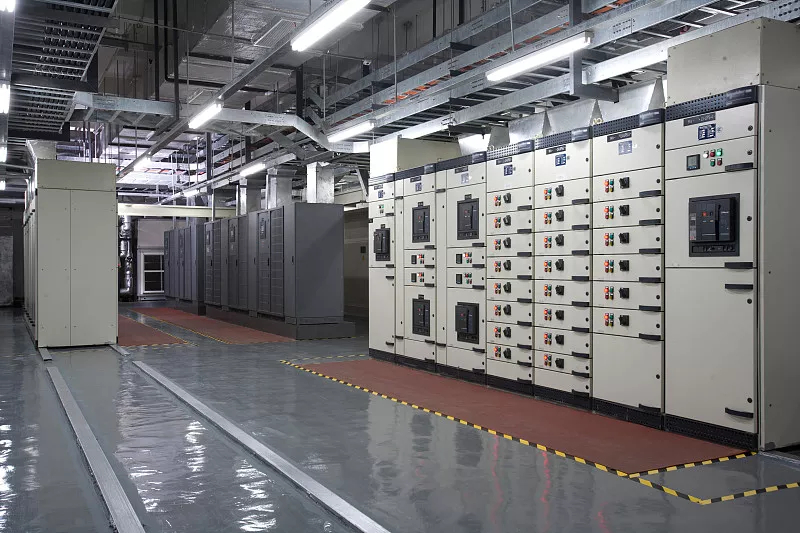

Power distribution room
communication equipment room
