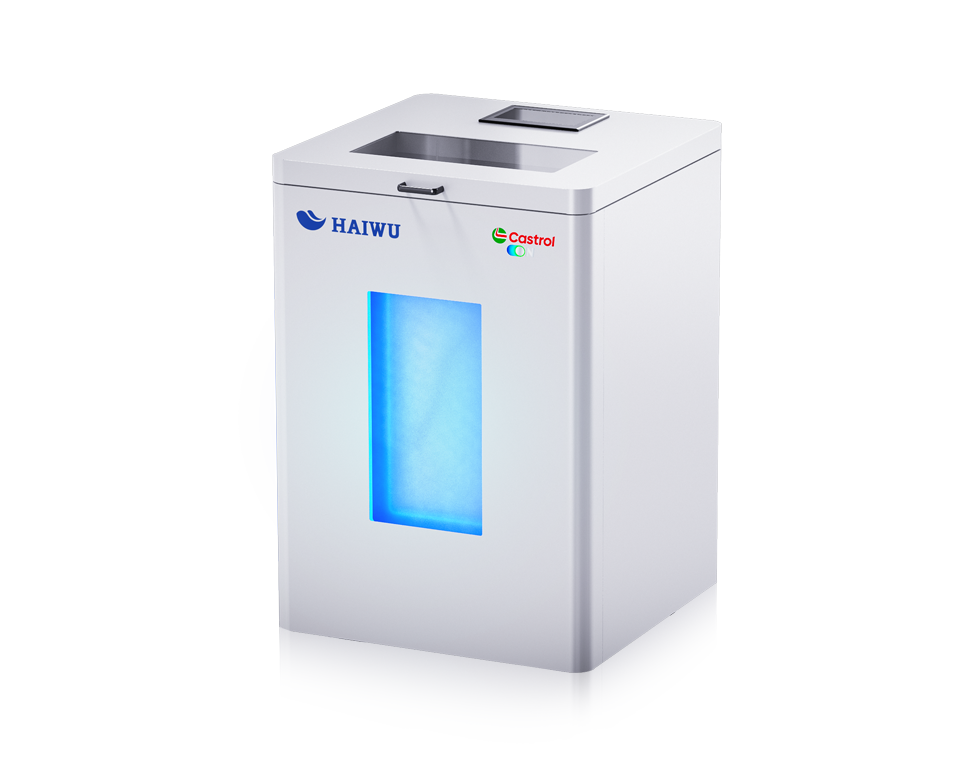

Immersive liquid-cooled cabinet
The integrated immersion liquid cooling system is an immersion liquid cooling system with a built-in heat exchanger, which can efficiently achieve self-circulating cooling for internal IT equipment such as servers and switches. This immersion liquid cooling system consists of an immersion Tank (1U), a liquid-liquid heat exchanger, a circulation pump, and cooling liquid. By directly connecting to the primary side system's water supply and return as well as the cooling tower system of the data center, it can meet the heat dissipation requirements of the IT equipment inside the Tank.
Temperature fluctuation of the secondary side supply liquid ≤±0.5℃
10%~100%Adjust within the range
Heat exchange support
Value proposition
High reliabilityHigh compatibility: Wet materials are compatible with working fluids.
Leakage detection: Supports direct/indirect full-link leakage detection.
Working fluid detection: Optional cooling fluid quality detection component is available, with over-limit alarm function.
Supports power-off memory and power-on self-start functions.
Efficient temperature controlPrecise temperature control: The fluctuation of the secondary side supply temperature is ≤ ±0.5℃, and the fluctuation of the secondary side supply and return pressure difference is ≤ ±0.1bar.
Wide-range adjustment: Heat exchange capacity supports adjustment within the range of 10%~100%.
Frequency conversion technology: Adopts a variable frequency circulating pump, which intelligently adjusts the pump speed according to the load.
High energy efficiency: Supports linkage with the natural cooling system to maximize the use of natural cold sources in low-temperature environments.
Intelligent anti-condensation: Real-time detection of the dew point temperature in the equipment room and intelligent adjustment of the temperature control target.
Intelligent ControlControl algorithm: The key components adopt the PID algorithm to intelligently match IT loads.
Remote monitoring: Supports the Modbus communication protocol, enabling remote data monitoring and the issuance of control commands.
Power monitoring: Optional smart electricity meters are available to facilitate the construction of green data centers.
Application scenarios
operator
Cloud computing and computing power data centers
