In today's pursuit of environmental protection and efficiency, air energy heat pump heating hot water system has become the new favorite of modern home heating with its unique energy-saving advantages. It can not only efficiently convert low-grade heat energy in the air into high-temperature heat energy required indoors, but also maximize the use of resources, so that warmth and environmental protection can go hand in hand. Today, let's unveil the mystery of air energy heat pump heating hot water systems and explore the working principle and excellent performance behind them.

1. Working principle: green conversion, warm upgrade

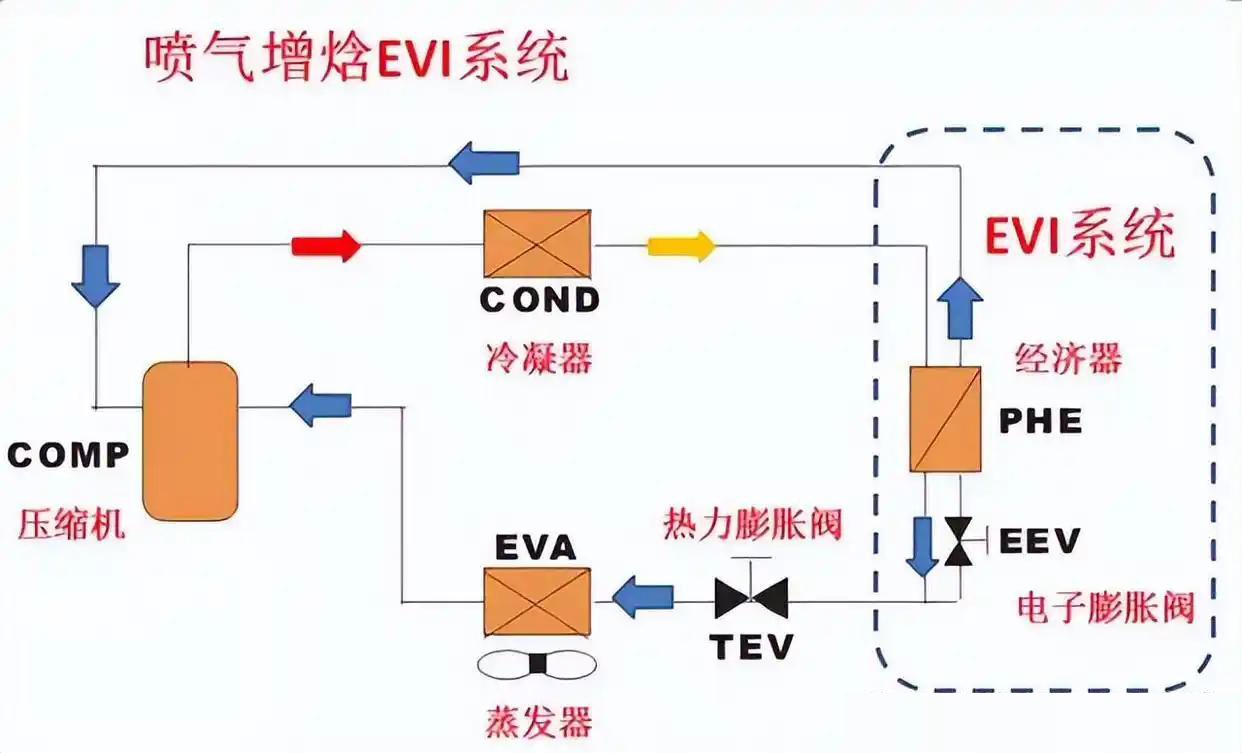

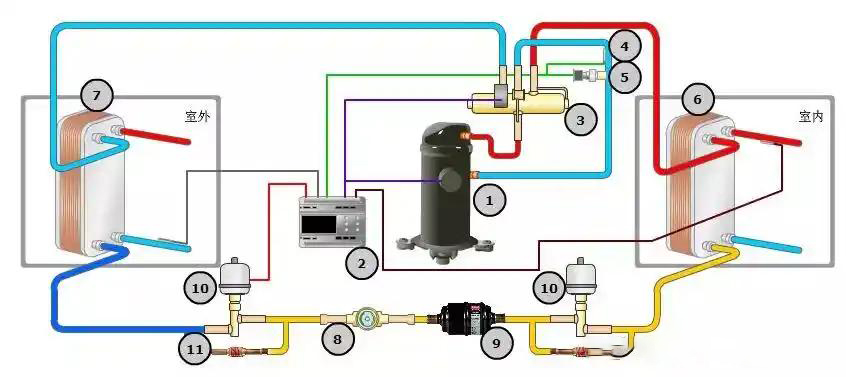

At the heart of the air energy heat pump heating hot water system lies its efficient heat energy conversion process. The entire system consists of four core components - compressor, evaporator, condenser and expansion valve - working together to complete the green cycle from endothermic absorption to endothermic release.

1. Heat absorption process: When the air energy heat pump main engine is powered on, the evaporator starts to work, like a huge sponge, absorbing the heat in the air. The refrigerant evaporates in the evaporator, skillfully capturing this low-grade heat energy in preparation for subsequent conversions.

2. Compression process: The refrigerant in the evaporator is compressed into high-pressure gas by the compressor, which not only increases the temperature and pressure of the refrigerant, but also lays a solid foundation for its subsequent heat release.

3. Heat Release Process: The high-pressure refrigerant gas enters the condenser, acting like a passionate messenger, selflessly releasing the heat it carries into the heating circulating water. This heated circulating water is then delivered through the circulation system to the heating end equipment in the room, such as underfloor heating, radiators or fan coils, to deliver warmth to every inch of space.

4. Circulation process: The heating end equipment transfers heat to the indoor air to achieve indoor heating. The cooled refrigerant returns to the evaporator through the expansion valve and embarks on the journey of absorbing heat again, forming a perfect closed-loop cycle.

2. System composition: precise cooperation, excellent performance

The excellent performance of air energy heat pump heating hot water system is inseparable from its sophisticated components.

• Core components: compressor, evaporator, condenser and expansion valve, each of which performs its own function to ensure the stable operation and efficient conversion of the system.
• Heating end equipment: floor heating, radiator and fan coils, etc., they work closely with the heat pump host to evenly distribute warmth to every corner of the room.
• Circulation system: It consists of pumps, pipes, and valves, which are responsible for transporting hot water from the heat pump host to the heating end equipment, and then sending the cooled water back to the main unit, forming an efficient circulation network.
• Control system: including computer motherboard, temperature sensor and monitor, etc., they are like the intelligent brain of the system, monitoring and controlling the operation status of the entire system in real time to ensure that the indoor temperature is always stable at the set value.

 3. Precautions for use: See the real chapter for details

To get the best performance of the air energy heat pump heating hot water system, you need to pay attention to the following points:

• Avoid frequent switching: Frequent switching and closing of heat pump units not only affects the quality of heating but also increases energy consumption. Therefore, frequent operations should be avoided as much as possible when using it.
• Reasonable temperature setting: The water supply temperature has an important impact on the time when the indoor temperature is reached. Under normal circumstances, when the water supply temperature is below 45°C, the energy efficiency of the air energy heat pump host is relatively high. Therefore, setting the water supply temperature reasonably can not only ensure a comfortable indoor temperature, but also save energy.
• Maintain ventilation: The area around the outdoor main unit of the heat pump should be well ventilated to avoid debris obstruction. This not only ensures the normal operation of the heat pump, but also improves its heat transfer efficiency.
• Regular cleaning: Regularly clean up snow, weeds, dust and other debris around the heat pump host to maintain sufficient clean air circulation around the heat pump. This not only helps to extend the life of the heat pump but also improves its efficiency.

To sum up, air energy heat pump heating hot water system has become an ideal choice for modern home heating with its green, efficient, warm and easy-going characteristics. It can not only bring us a comfortable and warm living environment, but also play an important role in energy conservation and emission reduction. Let's work together to build a green home and let warmth and environmental protection go hand in hand!
